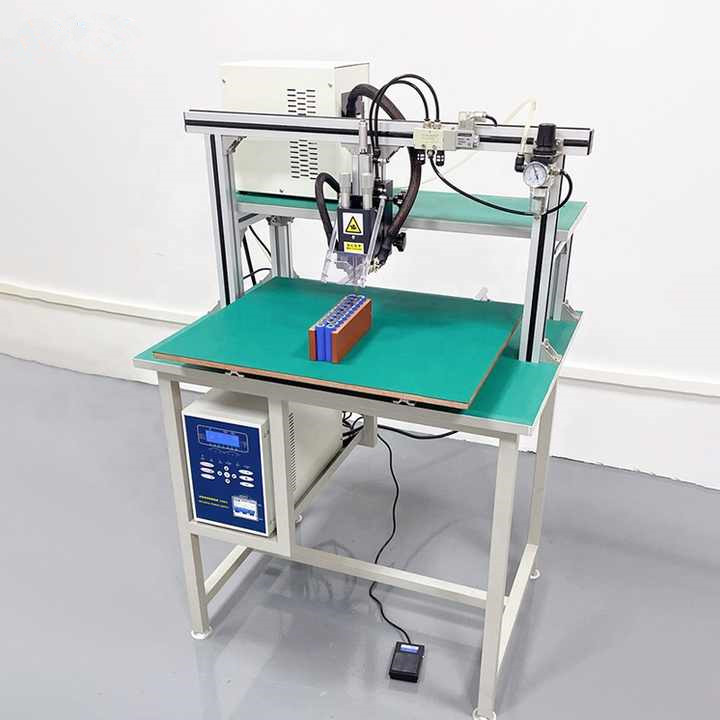

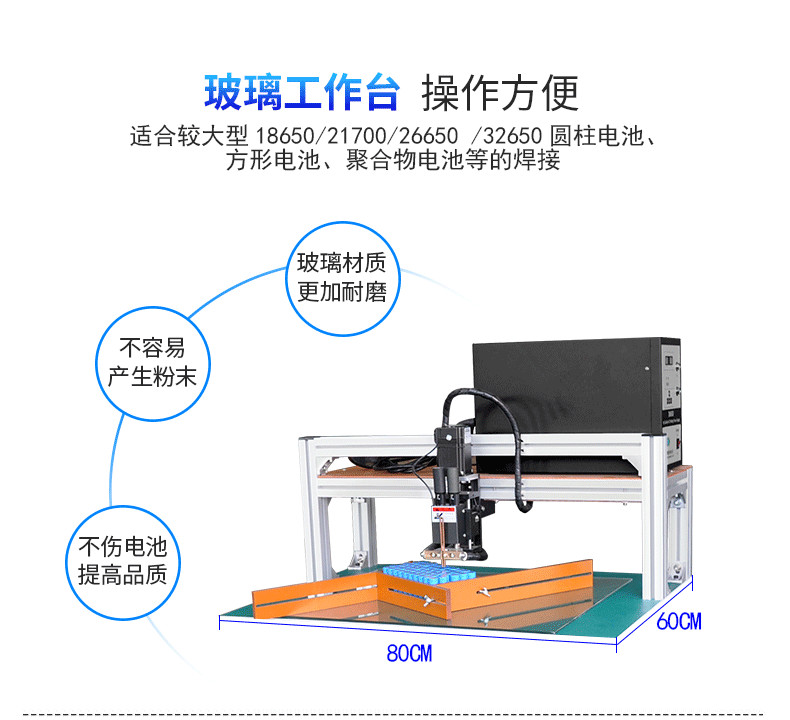

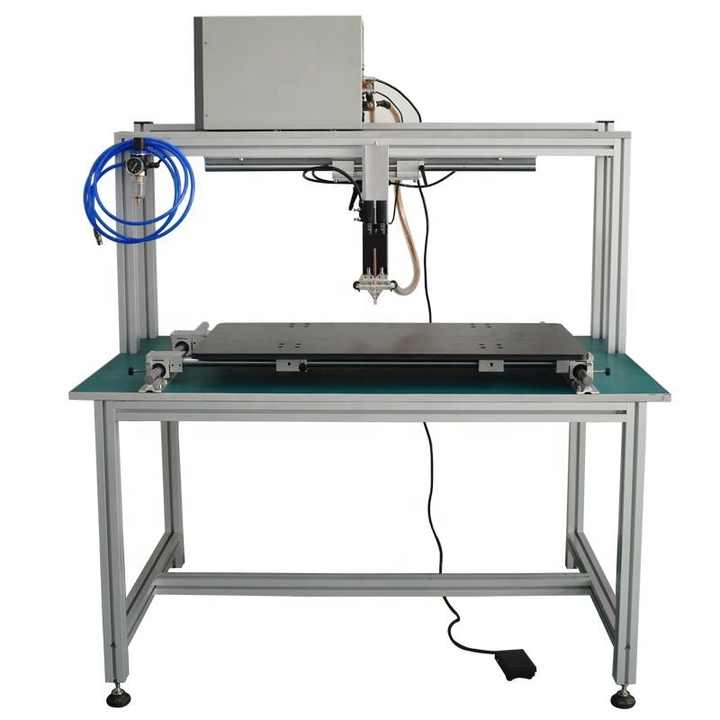

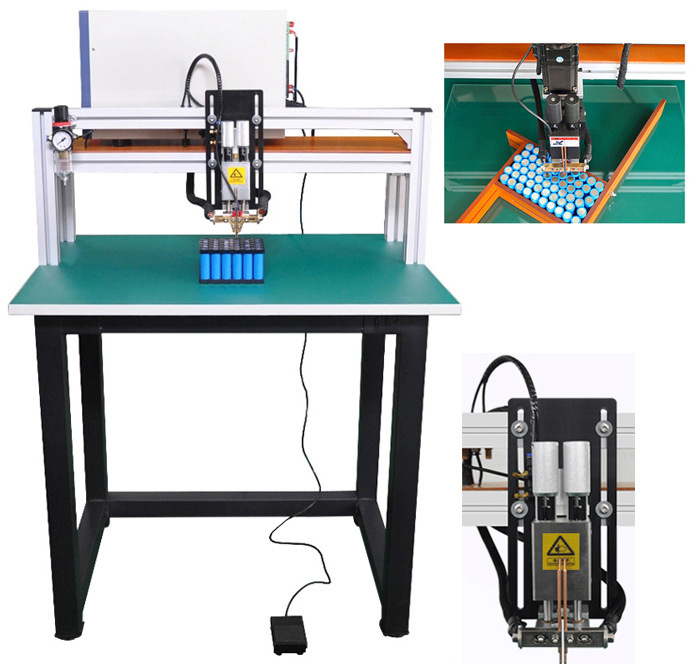

5000A 8000A Battery Pack DC Inverter Cylindrical Cell Gantry Spot Welder With Slide Rail
Description
ZEKE-5000D (DC machine) Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply, Suitable battery for pack spot welding and assembly in the factory.

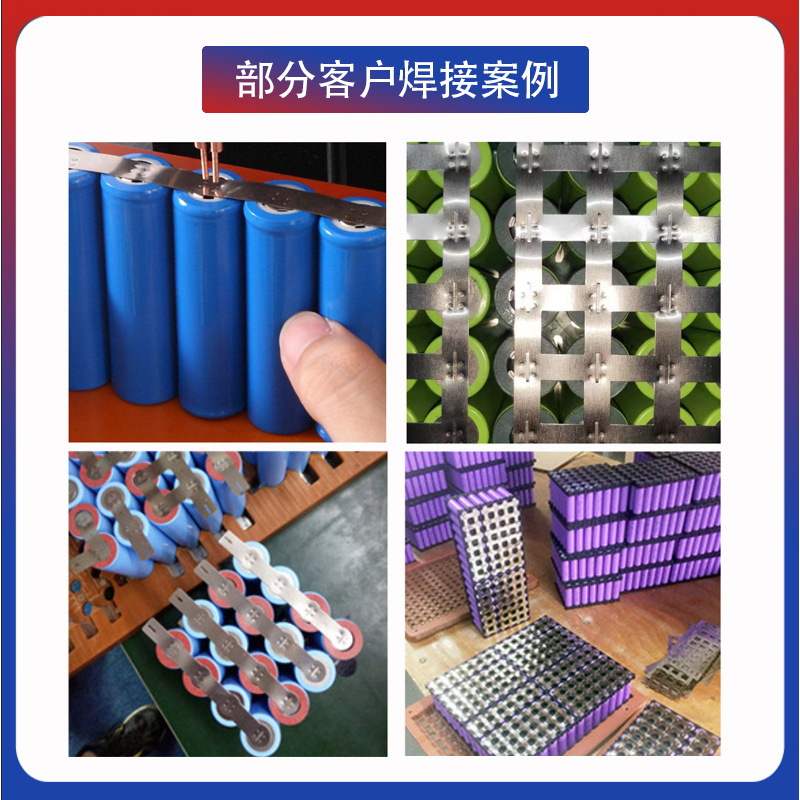

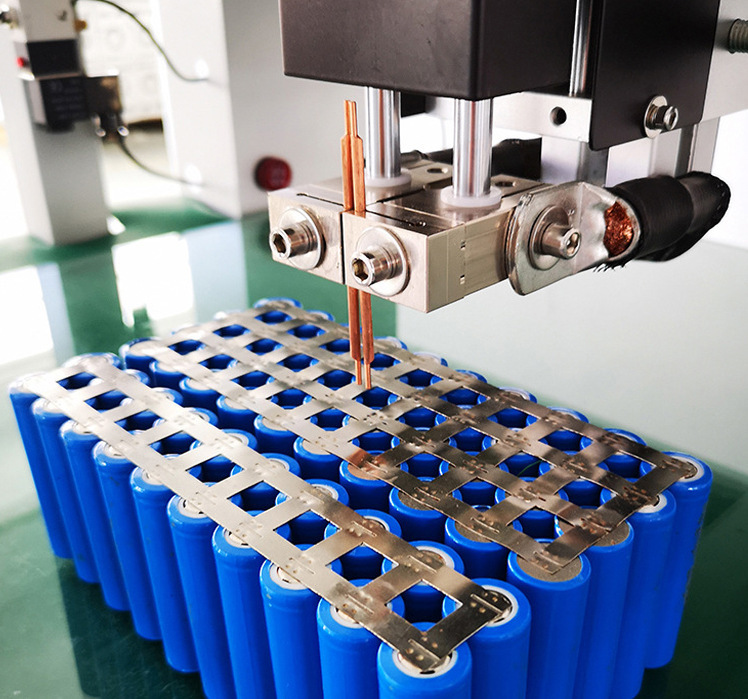

*Can assembling batteries like 18650,21700,26650,32650,32700... and Nickel or Nickel-Plated Steel strips. .
*Panel Microcomputer control, high precision welding machine with plc display panel.
*Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power.
*Industrial circuit design, safe and reliable
Max output power of transformer | 35 KVA |
Output max short circuit current | 5000A 8000A |
Floating voltage | 10V |
Control mode | constant current control |
Cooling mode | forced air cooling |
Condition | 8 |
Use | electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc |
Max welding thickness | 0.2 |
Machine weight | 52kg |
External dimension | L1200mm*W600mm*H960mm |
Input power | Single Phase 220V±10% 50/60Hz |
